Inch tapered roller beraing LM series

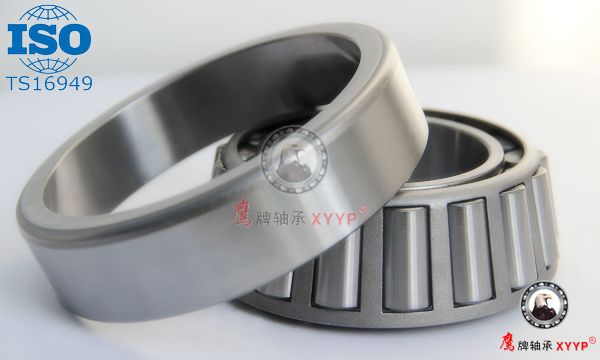

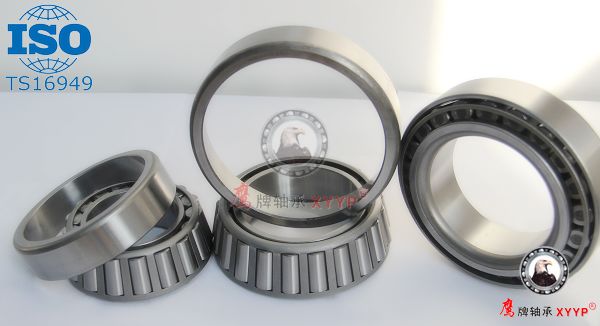

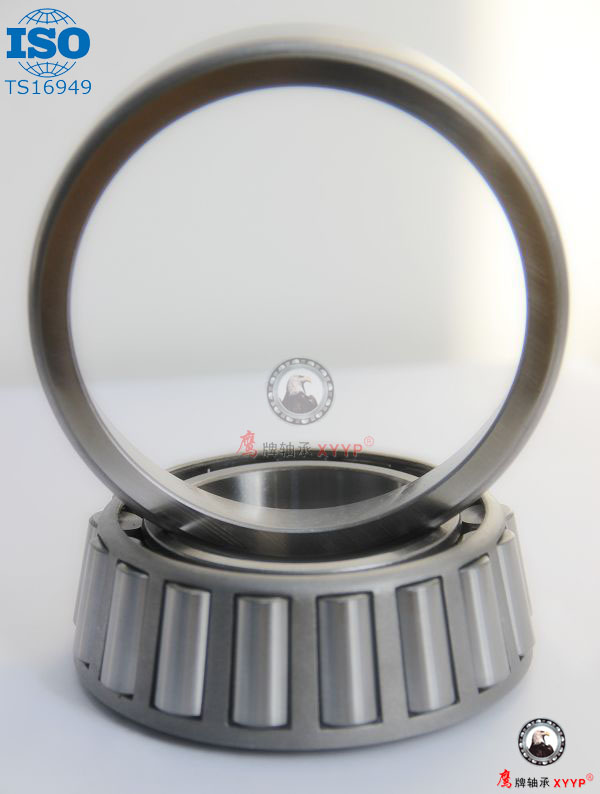

1. Inch Tapered Roller Bearing
Inch Tapered roller bearing is generally used to support combined load mainly consisting of radial load. Their cups are separable for easy assembling, during mounting and using, radial clearance and axial clearance can be adjusted and preloaded mounting can be made.

2. XYYP Inch Tapered roller bearing LM Series Catalogue





Type	Boundary Dimensions(mm)			Basic Load Rating (kN)		Weight
	d	D	T	Cr.	Cor.	(Kg)
LM11749/LM11710	17.462	39.878	13.843	25.4	26	0.0858
LM11949/LM11910	19.05	45.237	15.494	30.6	32	0.122
LM12749/LM12710	21.987	45.237	15.494	30.1	34.6	0.116
LM12749/LM12711	21.986	45.975	15.494	30.1	34.6	0.121
LM67048/LM67010	31.75	59.131	15.875	35.8	43.1	0.175
LM48548/LM48510	34.925	65.088	18.034	48	58.5	0.25
LM78349A/LM78310A	34.988	61.973	16.7	37	48	0.21
LM29748/LM29710	38.1	65.088	18.034	42.9	56.5	0.247
LM29749/LM29710	38.1	65.088	18.304	43.5	57	0.247
LM29749/LM29711	38.1	65.088	19.812	42.9	56.5	0.23
LM300849/LM300811	40.987	67.975	17.5	46	64.5	0.24
LM501349/LM501310	41.275	73.431	19.558	57.8	73	0.33
LM501349/LM501314	41.275	73.431	21.43	57.8	73	0.36
LM603049/LM603011	45.242	77.788	19.842	57.1	73.5	0.37
LM603049/LM603012	45.242	79.974	19.842	57.1	73.5	0.4
LM603049/LM603014	45.242	77.788	21.43	57.1	73.5	0.38
LM102949/LM102910	45.242	73.431	19.558	55.6	78.1	0.32
LM503349/LM503310	45.987	74.975	18	52.6	74.6	0.3
LM104949/LM104911	50.8	82.55	21.59	61.2	84.3	0.42
LM104949/LM104912	50.8	82.931	21.59	69.5	94	0.43


                                                                                                                                                                                        MORE...
3. XYYP Inch Tapered Roller Bearing Advantage


1. International superior raw material

2. Advanced producing equipments

3. Good quality control system

4. Passed TS16949:2009

5. Low vibration

6. Long service life

7. Smooth operation

8. High quality, best service

9. OEM service available

10. Warranty 1 year

11. Prompt delivery

12. Special products available, according to drawings or samples


4. XYYP Packing Details
1). Industry package: Plastic paper + Carton + Pallet / Plywood box
2). Single Box: Plastic paper + Plastic bag + Single box + Carton + Pallet / Plywood box
3). According to your demand


5. XYYP Inch Tapered Roller Bearing Export Market
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
